| مقدار تولیدی: | 1 |
| قیمت: | US $3500.00 - 4880.00/ Set |
| بسته بندی استاندارد: | جعبه مقوایی/جعبه چوبی |
| دوره تحویل: | 6 تا 8 هفته |
| روش پرداخت: | T/T |
| ظرفیت تامین: | 500 مجموعه در سال |

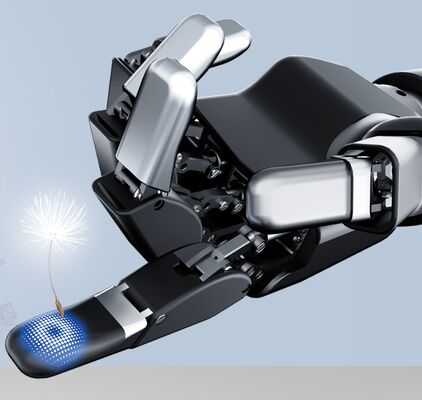

DH-Robotics DH-5-6 is a commercial 5-finger dexterous robotic hand with 6 active DOF. It uses tendon-driven actuation with micro linear actuators and integrates force/tactile perception for precise grasping. The hand is aimed at humanoid robot applications, collaborative robot end-effectors, research and education platforms where cost-effective dexterity is required.
| Parameter | Specification |
|---|---|
| Finger Count | 5 fingers |
| Active DOF | 6 |
| Total Joints | 12 |
| Actuation | Tendon-driven (micro linear actuators) |
| Sensing | Force / tactile feedback |
| Control | Hybrid position-force control |
| Communication | CAN / RS485 / EtherCAT |
| Weight | Approx. 400–550 g |
| Single Finger Force | 5–15 N (typical) |
